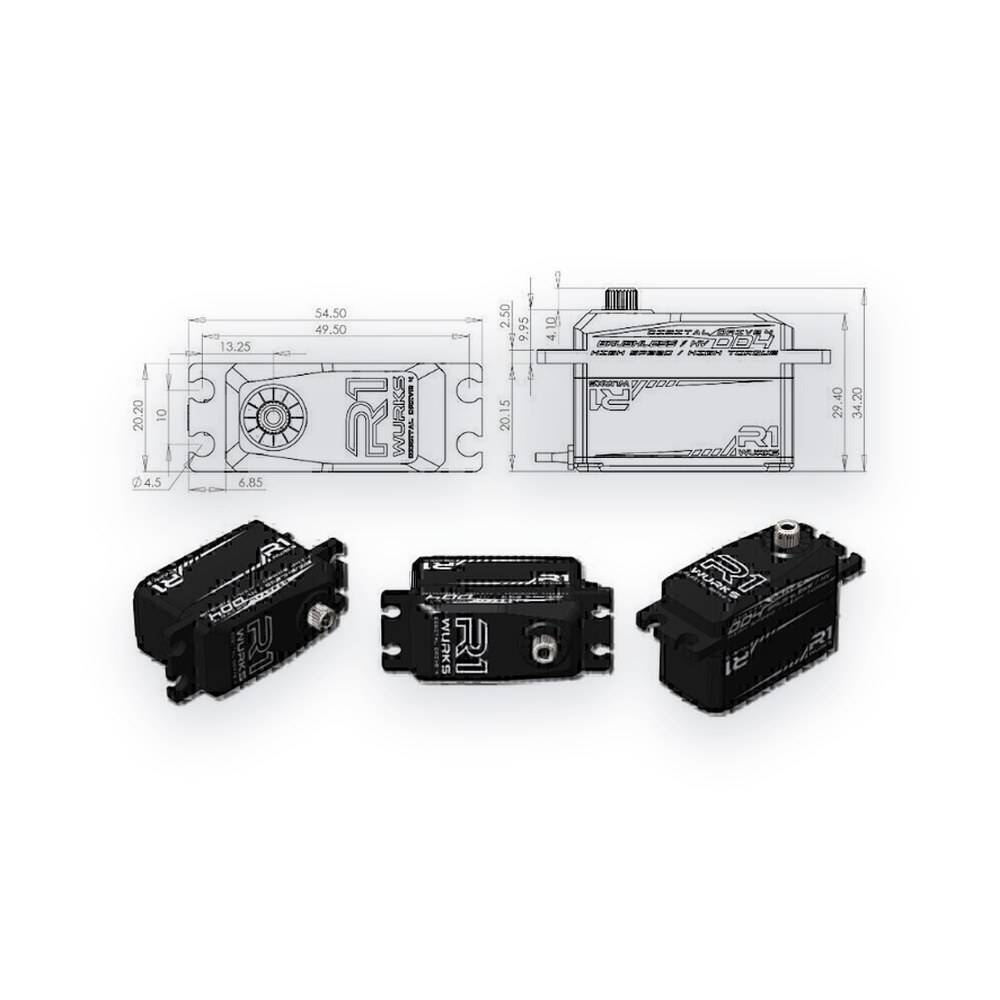

R1WURKS DD4 Low-Profile Servo, High Torque/Speed

Name: R1WURKS DD4 Low-Profile Servo, High Torque/Speed
Brand: R1Wurks
SKU: R1W050010
Price: 133.29 USD
Availability: OutOfStock

R1Wurks Radio Accessories

$133.29

Out of stock

Added ✓

30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link

Whippy checked: this one just sold out — check back soon.

About this part

A high-voltage low-profile servo for racers who want more steering control. It produces strong torque and speed, so steering stays direct and consistent under load, through a sweeper or a quick chicane.

Features

Machined aluminum billet case for strength and fast heat dissipation
Monochromatic wire coloring: negative black, positive black, signal grey
Full stainless steel gear train
High-voltage capable, with high torque and high speed

Specifications

80mm wire length, 25T spline
Brushless motor, FET motor drive
Dual ball bearings, magnetic sensor
333Hz refresh rate, pulse width modulation control
Weight: 2.35oz
Voltage: 4.8V to 8.4V
Torque: 20 kg-cm (278 oz-in) at 4.8V, 25 kg-cm (347 oz-in) at 6.0V, 30 kg-cm (417 oz-in) at 7.4V, 33 kg-cm (458 oz-in) at 8.4V
Speed: 0.110 sec/60 at 4.8V, 0.090 sec/60 at 6.0V, 0.080 sec/60 at 7.4V, 0.068 sec/60 at 8.4V
Listed as fitting most applications, and specifically:
Align T-Rex 250, 450, 500, 550, 600, 700
