MR33 Circle Droop Gauge, V2

About this part

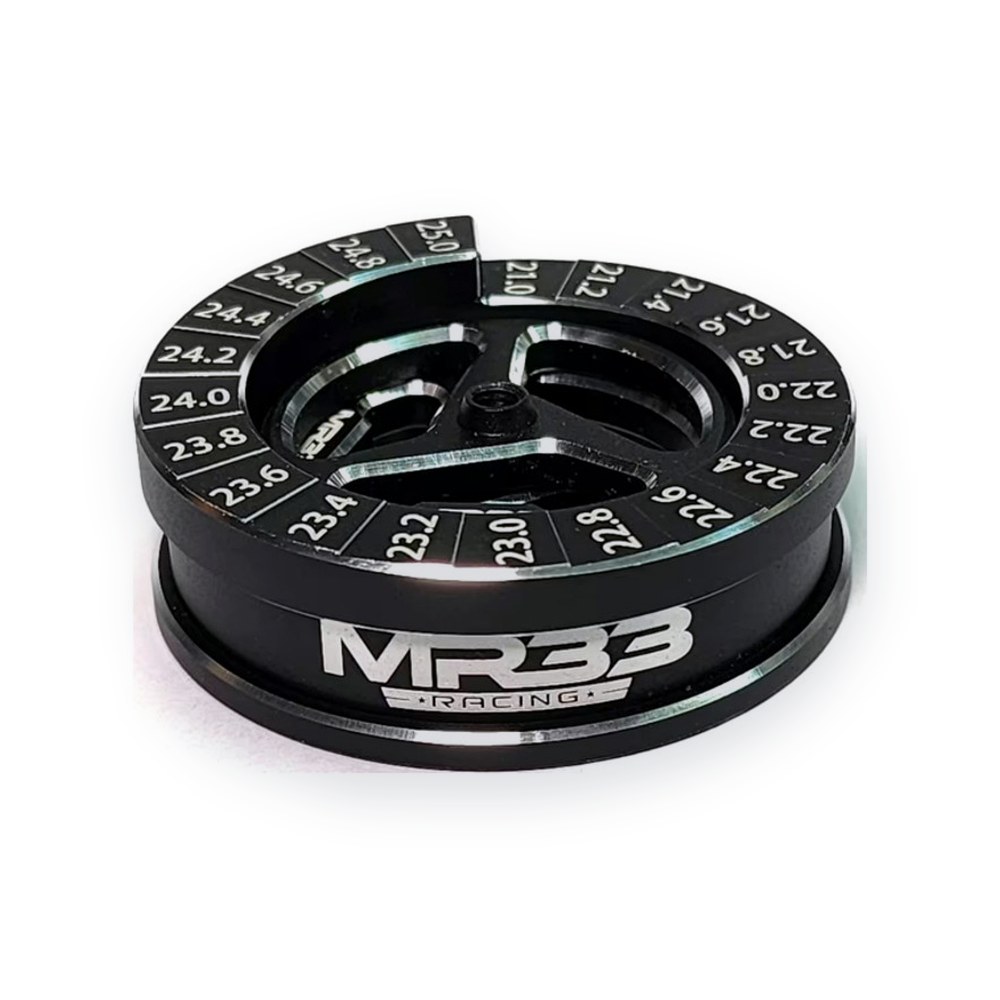

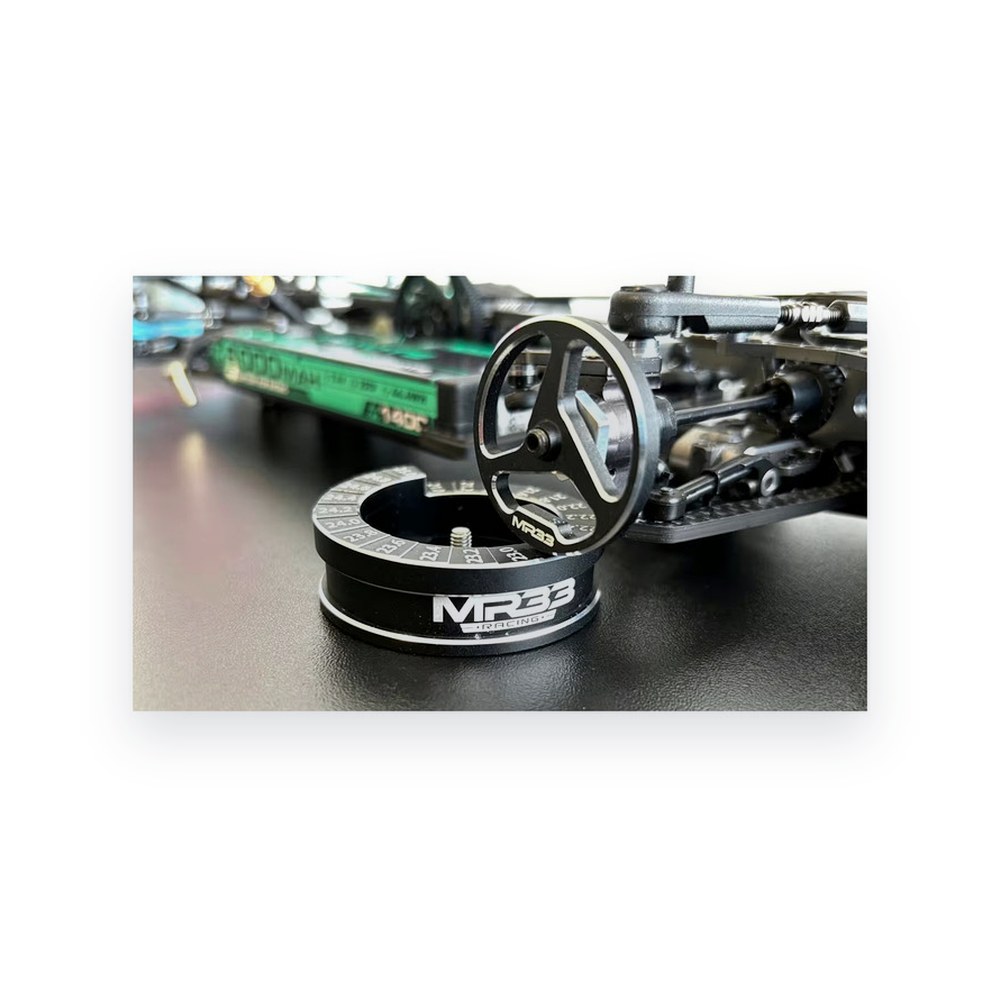

The MR33 Circle Droop Gauge V2 measures and adjusts droop on a 1/10 scale touring car or FWD model with more precision than older methods. Two small aluminium wheels bolt onto the wheel axles, and the suspension travel is measured at the lower edge of those wheels. Because the reading is taken at the centre of the axle, tolerances in the wheel carriers, wishbones, and other parts do not affect it. The gauge is graduated in 0.2mm steps with a measuring range of 21.0 to 25.0mm. To compare with an older gauge reading, such as 4.0 or 6.0, run a comparison measurement and record the pairs in a small table.

You will receive

• MR33 Circle Droop Gauge V2
• 2 bolt-on aluminium wheels
• Fits: Yokomo MR4TC, HPI Electric Pro 3 and Pro 4, Losi 1:10 XXX-4 sedan, Tamiya TA-07, Tamiya TT-02D

Fits
