Incision Light Kit, Series 3

About this part

This light kit is designed for the VS4-10 Phoenix and VS4-10 Origin Classic bodies, including the molded front inner fenders. Origin Classic also takes rear fenders.

Features

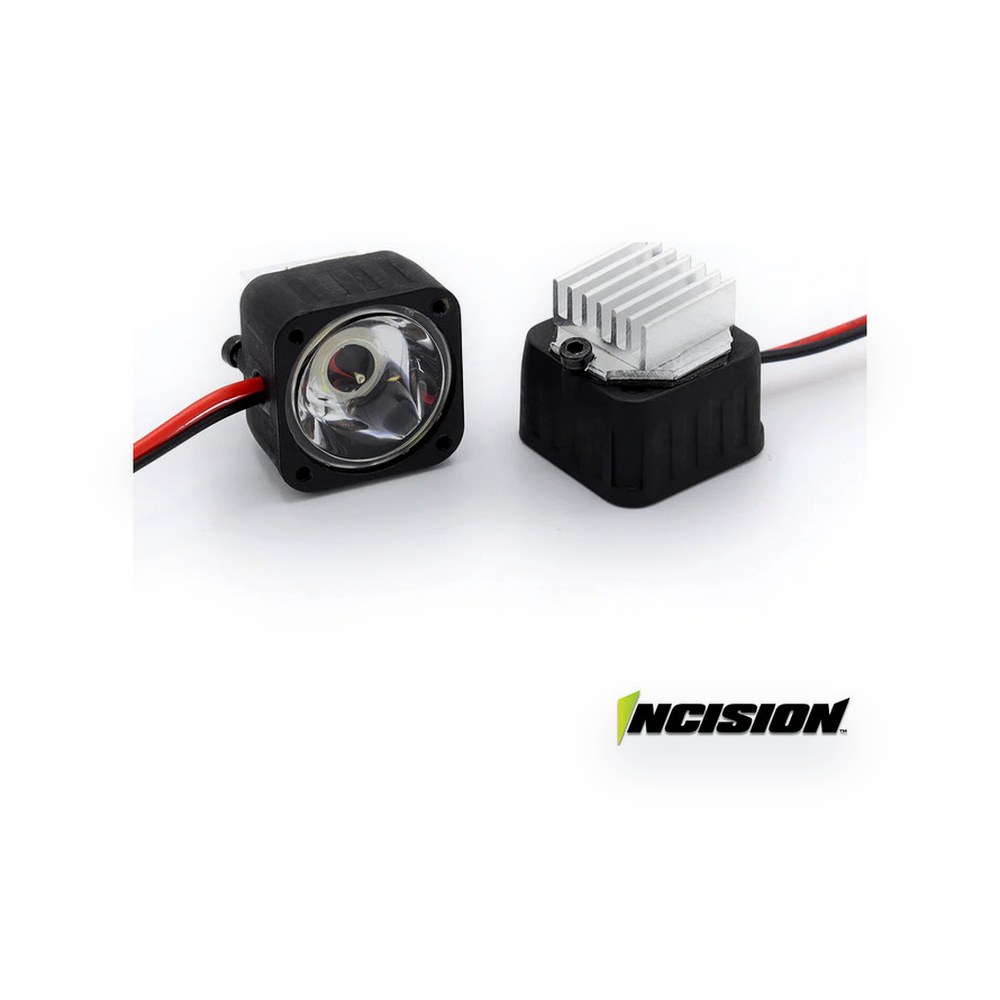

• Molded front light buckets with high-power LED and heat sink
• Red LED tail lights
• White LED front and rear inner fender rock lights
• LED controller with manual on/off and aux receiver channel on/off
• Headlights run from a 2-3S LiPo through the controller's balance plug. Aux control and red LED headlights run from the RX plug.

Includes

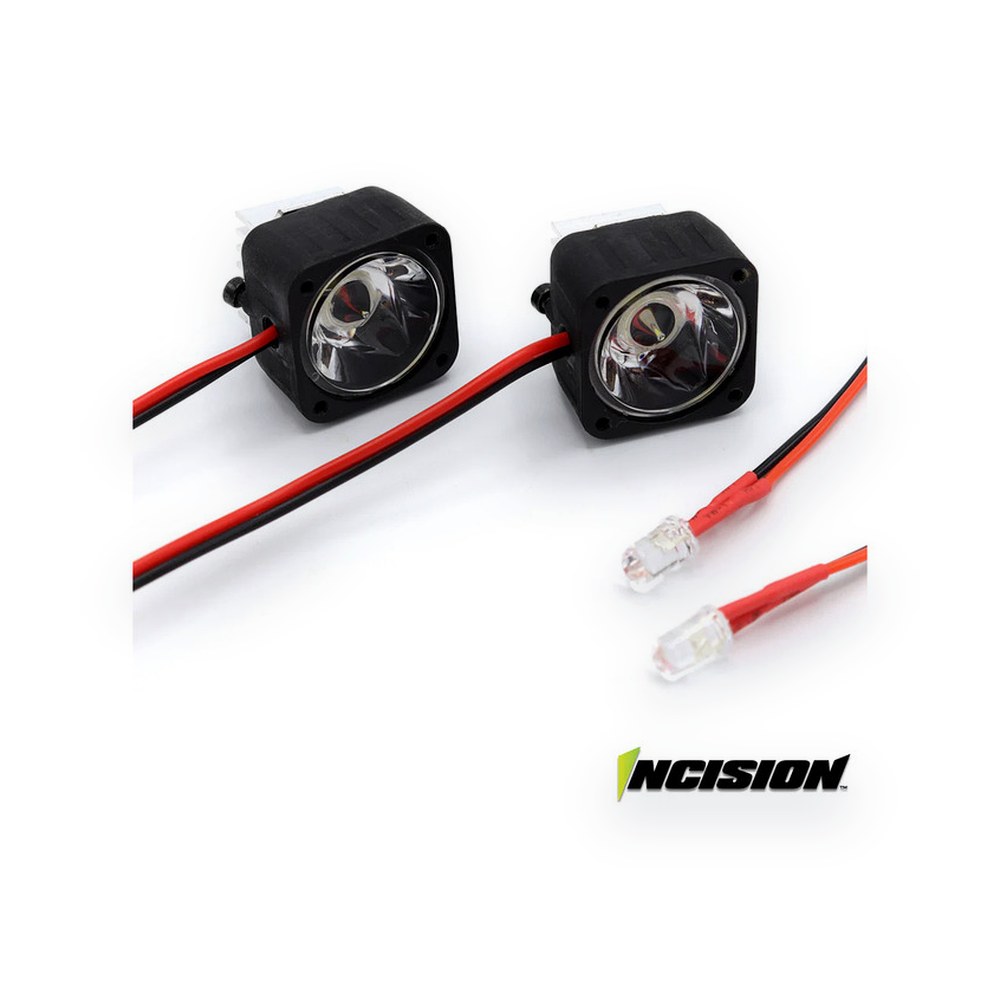

• 2 molded front LED headlight housings with heat sink, direct fit to the Phoenix grille bolt pattern
• 2 5mm red LED tail lights
• 4 PCB LED rock lights for the molded inner fenders (use 4 on Origin, 2 on Phoenix)
• 1 LED controller with required power plugs
• A parts box
• INSTALLATION:
• Remove the stock light buckets from the body set. Mount the light assembly to the body with the existing 1-64 hardware. Red tail lights mount into the stock VS4-10 rear LED housings. Mount the controller to the chassis and connect the body-mounted LEDs with the 4-pin connector.
