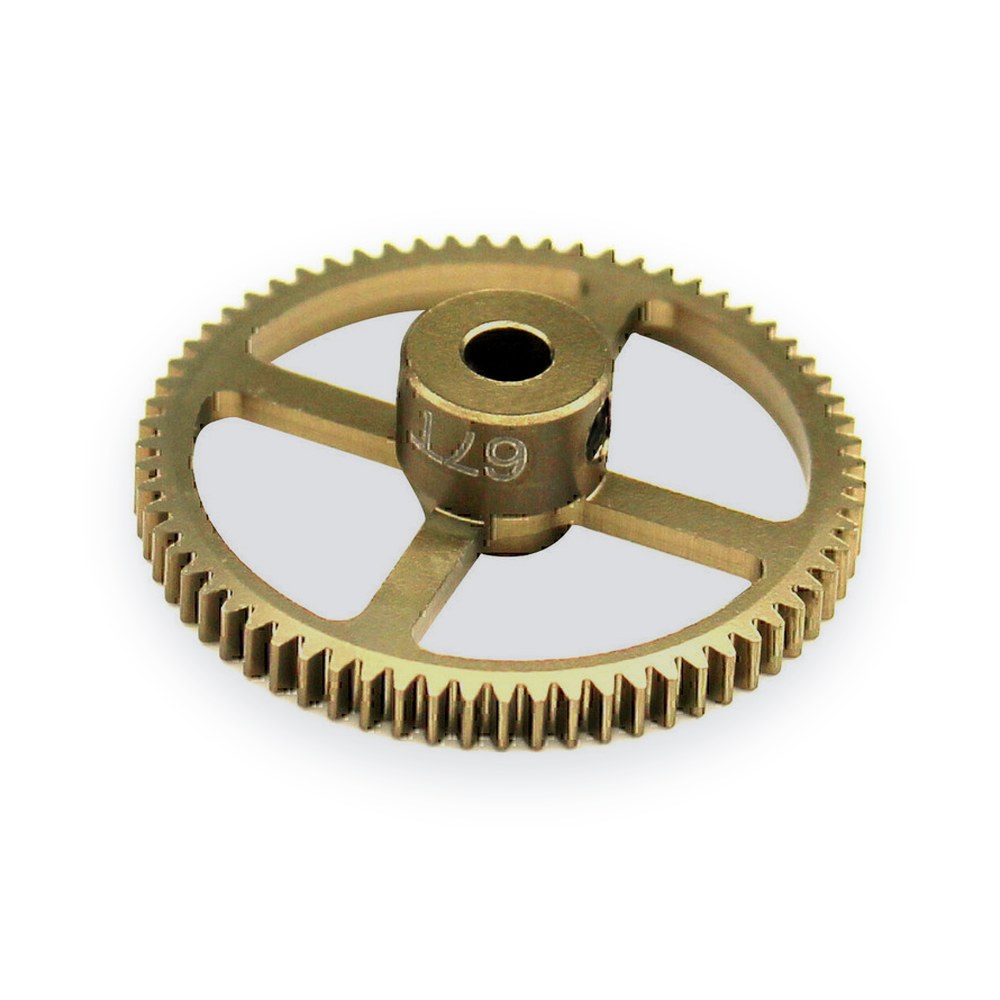

Hot Racing 64p Pinion Gear, 67t, Hard Anodized 7075

About this part

A 67-tooth, 64-pitch racing pinion gear in hard anodized 7075 aluminum from Hot Racing. Built for Kyosho and Schumacher 1:12 models.

Features

• CNC machined from 7075 aluminum with a short shank
• Beveled tooth edges
• Tooth count is stamped on the gear for quick identification
• Hard anodized surface, an electrochemically formed grey layer of aluminum oxide
• WHAT YOU RECEIVE:
• One pinion gear and one M3 set screw

Requirements

• An Allen wrench or ball driver is needed for mounting

Specifications

• Tooth count: 67
• Pitch: 64
• Tooth width: 2.6mm
• Gear width: 7.6mm (0.38 in.)
• Inner diameter: 3.175mm (0.125 in.)
• FITS:
• Kyosho 1:12 Fantom
• Kyosho 1:12 Fantom 4WD
• Schumacher 1:12 Atom 2
• Schumacher 1:12 Atom 3
• Schumacher 1:12 Eclipse 4
• Schumacher 1:12 Eclipse 5

Notes

• Suited to most applications that call for a 64-pitch pinion.
