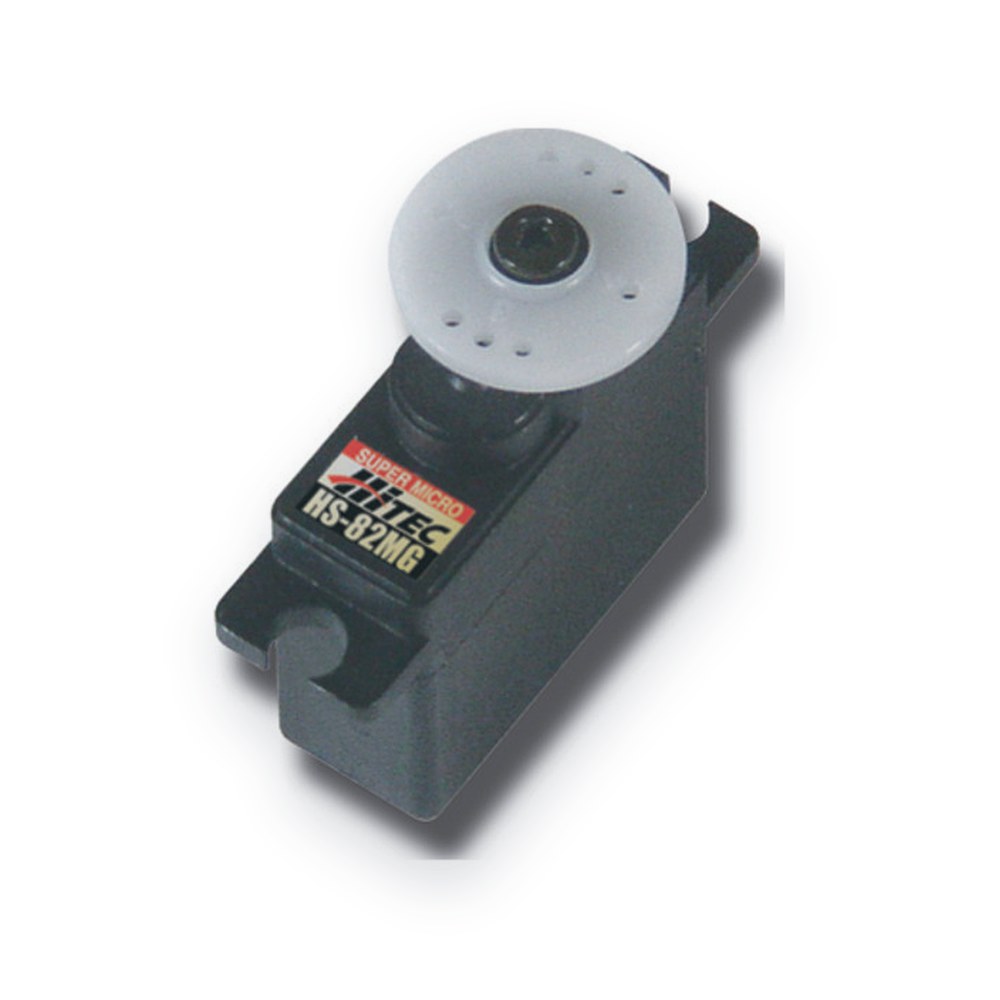

Hitec/RCD HS-82MG Micro Servo, Universal

About this part

The HS-82MG is a micro servo with a durable metal gear train, suited to smaller aircraft and helicopters. It has a strong three-pole ferrite motor and runs on 4.8 to 6.0 volts DC.

Features

• Strong three-pole ferrite motor
• Rugged metal gears

Specifications

• Operating voltage: 4.8V to 6.0V DC
• Speed: 0.12 to 0.10 sec
• Maximum torque: 39 to 47 oz-in (2.8 to 3.4 kg-cm)
• Current draw: 10 mA idle, 280 mA no load, 1,800 mA stall
• Dead band width: 5 s
• Dimensions: 1.17 x 0.47 x 1.16 in (29.8 x 12.0 x 29.6mm)
• Weight: 0.66 oz (19.0g)
• Circuit: HT7003 analog SMT
• Motor: 3-pole metal brush ferrite
• Gears: metal
• Bearing: none
• Output shaft: standard 24 spline
• Case: plastic
• Dust and water resistance: N/A
• Connector: 28 AWG, 20 strand
• FITS:
• General hobby RC aircraft parts
• General hobby RC airplane, brushless
