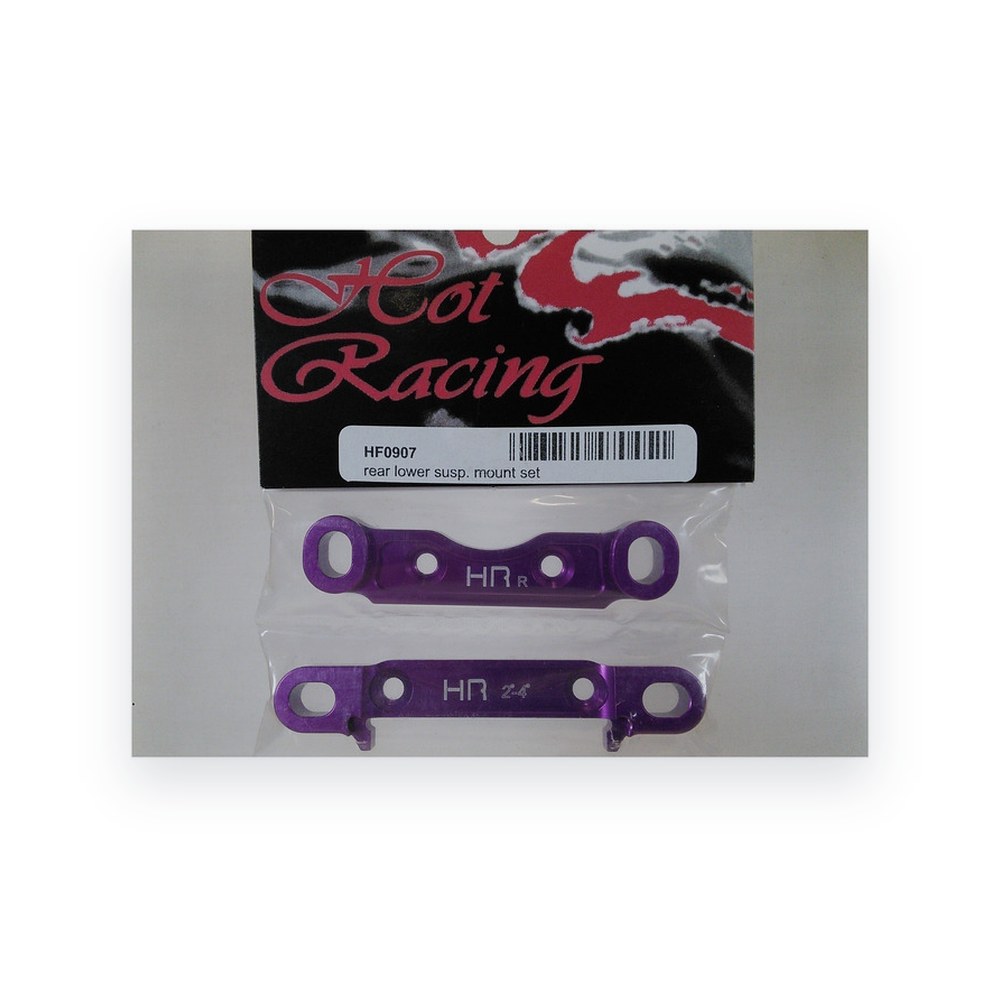

Hot Racing HPI Hellfire Rear Lower Suspension Mount, Aluminum

About this part

A rear lower suspension mount for the Hellfire. It bolts to the rear of the rear bulkhead and holds the inner suspension shafts. The 8mm mounts are CNC machined from high grade 6061-T6 aluminum and strategically lightened for less weight and added strength. Anodized purple. Best used as a set.

You will receive

• One 2-4 deg. rear lower suspension arm mount, rear
• One rear lower suspension arm mount, front

Requirements

• Installs to the rear of the rear bulkhead with two 4x20mm flathead screws, along with the eccentric bushings

Specifications

• Length: 3.08" (78mm), height: .63" (16mm), thickness: .32" (8mm)
• Length: 2.67" (68mm), height: .63" (16mm), thickness: .32" (8mm)

Fits
