Futaba 3pv Radio with R304sb Receiver, Telemetry, Tfhss

About this part

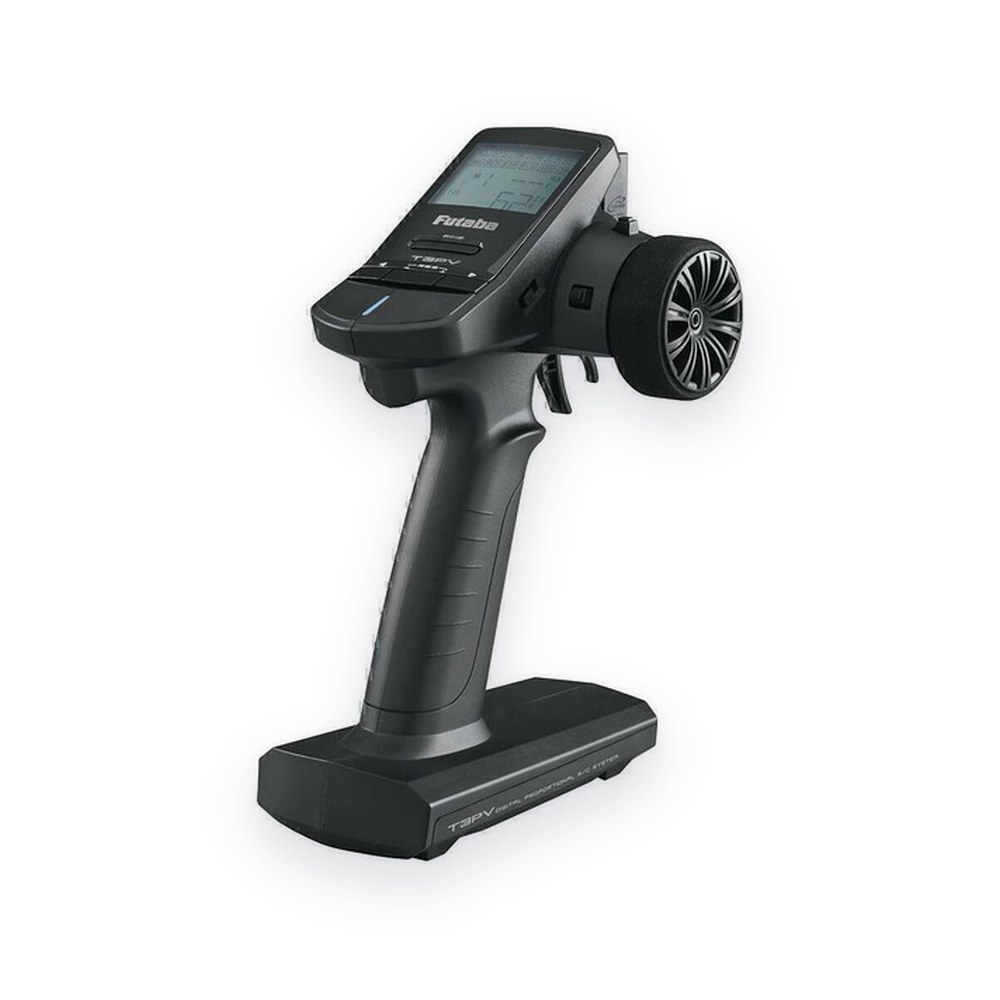

The Futaba 3PV 3-channel telemetry radio system comes with the 3PV transmitter and the 4-channel R304SB T-FHSS telemetry receiver. It fits the 3Racing Sakura and the Align T-Rex 100, 250, 450, 500 and 550.

Features

• FHSS, S-FHSS and T-FHSS protocols
• Large, easy-to-read programming screen
• Four-wheel steering and brake mixing, model data copy, ABS function
• Link mode, DT3 selection, SW1 and throttle fail safe
• Steering and throttle trim, channel 4 and sub trim
• Steering dual rate, end point and exponential adjustment
• Channel 3 and 4 end point adjustment and servo reversing
• Auto power off after ten minutes

Requirements

• Four AA batteries for the transmitter, or a Futaba HT5F1800B 6V NiMH pack (FUTM1482), or a Hobbico LiFe 6.6V 1900mAh pack (HCAM6521)

Specifications

• R304SB receiver, part FUTL7680
• Power: 4.8-7.4V battery (dry cells cannot be used)
• 2.4GHz receiving frequency, T-FHSS with auto detection and SBUS2 port
• Dimensions: 1.38 x 0.91 x 0.33 in (35.1 x 23.2 x 8.5 mm)
• Weight: 0.23 oz (6.6 g)
