X-Spede EC3 Device and Battery Connector

About this part

X-Spede EC3 skidproof 3.5 connector set with a blue plastic housing. It is intended for battery-to-ESC connections, with male and female contacts in 3.5 mm diameter.

Features

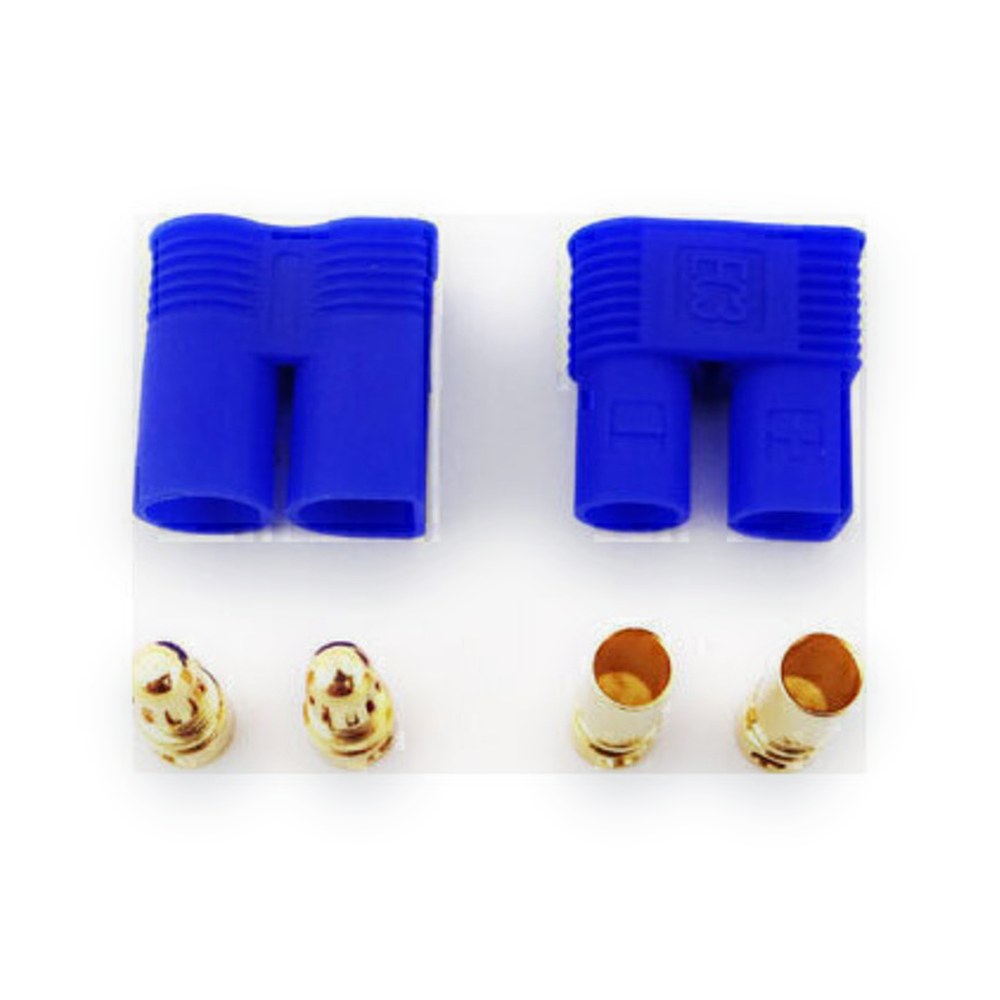

• Blue plastic housing with two male and two female 3.5 mm diameter connectors.

You will receive

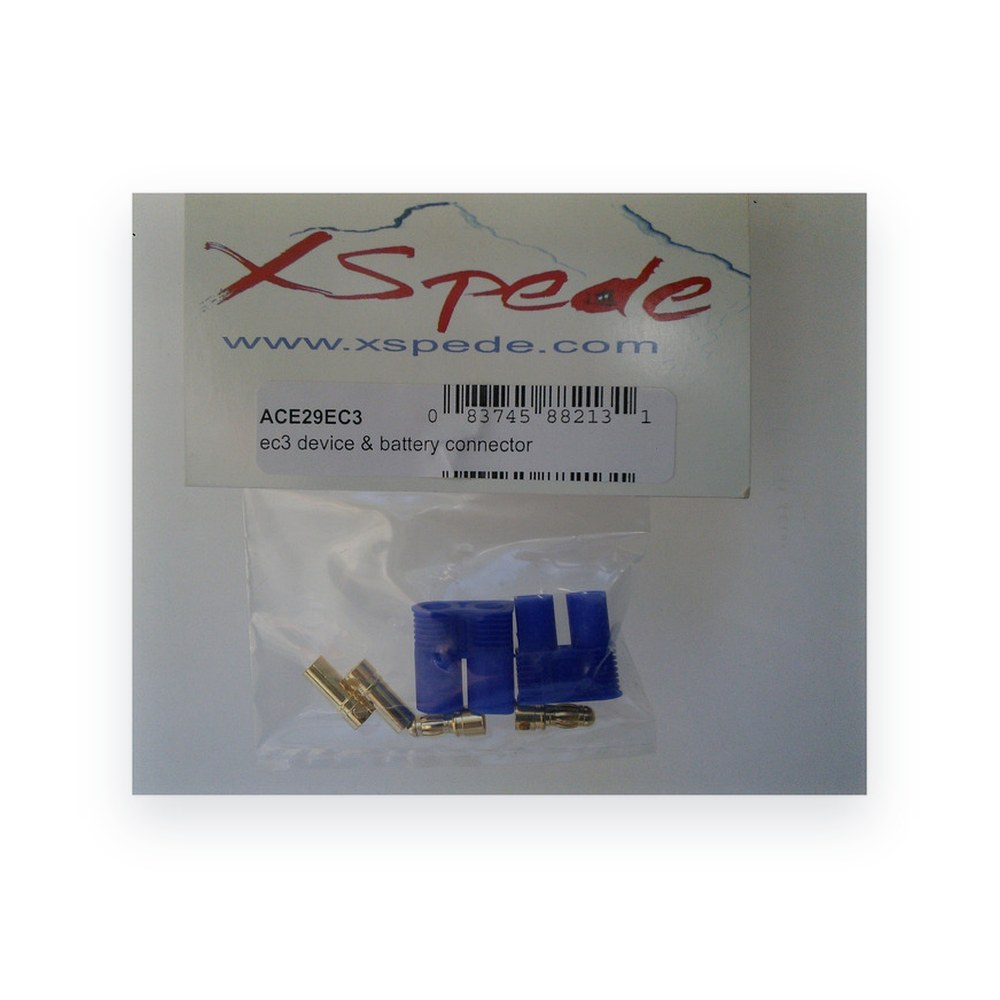

• Two EC3 skidproof 3.5 connectors.

Requirements

• You will need to solder your leads to the connectors.

Note

• The contacts seat wire side first into the housing, which is the reverse of most other EC connector brands.
• ASSEMBLY ORDER:
• 1. Run the wire through the plastic housing.
• 2. Strip and tin the wire.
• 3. Pre-tin the contact, keeping solder inside the cup.
• 4. Solder the wire into the contact.
• 5. Seat the contact into the housing.
